JORC Timer Drain Valves

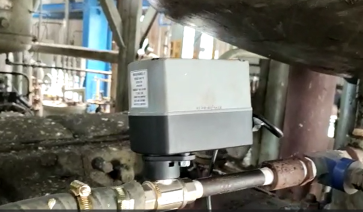

JORC Motorized Timer Autodrain TEC-44

Top-of-the-line, premium autodrain valve for heavy duty compressors.

TEC-44 is impossible to block, works where all other valves fail - powerful ball valve rotation and large orifice

Valve Orifice: 12 mm

Suitable for pressure rating: 0 - 40 bar.

Useful in draining applications with a high level of contamination (rust, scale etc.)

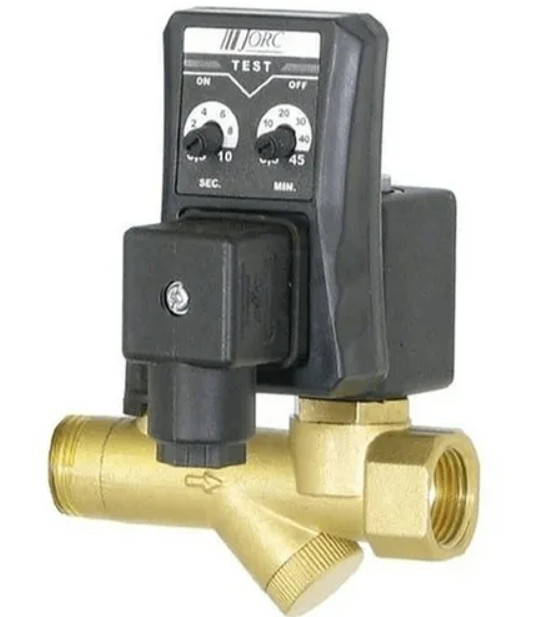

JORC Micdrain Combo - Ideal for OEMs

MICDRAIN®-COMBO is the economy line compact draining solution for all your compressed air applications (dryers, filters, receivers, drip legs, after-coolers etc.).

Removes condensate from compressed air systems by using a solenoid valve, with integrated ball-valve and strainer, in combination with an electronic timer.

Operating pressure: 0 to 16 bar

Valve Orifice: 4.0 mm

Competitive solution suitable for any type or size of compressed air system

Successful draining of condensate due to large orifice (also heavily emulsified condensate)

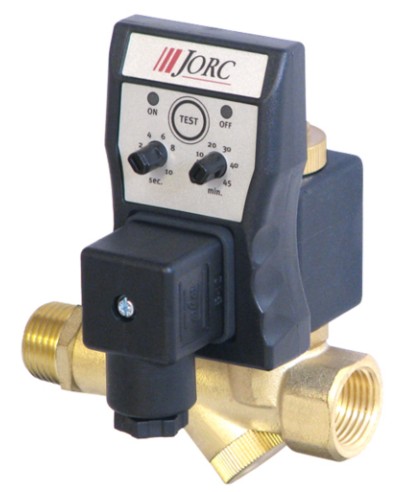

JORC Fluidrain Combo

FLUIDRAIN-COMBO Timer Controlled Condensate Drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems.

The FLUIDRAIN-COMBO saves installation time and protects against large particles found in condensate, thanks to the integrated ball valve and strainer. The unit can be shut off from the compressed air system, enabling easy and safe work to be carried out.

Operating Pressure: 0 to 16 bar (higher pressure available, consult PRANAM Engineering for FLUIDRAIN-HP)

Valve Orifice: 4mm

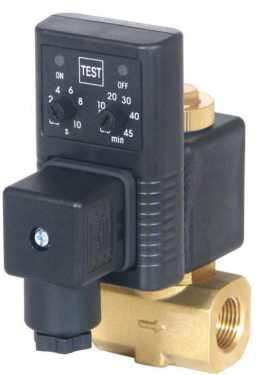

JORC Electronic Timer Drain EZ-1

Combination of solenoid valve and electronic timer drain to remove condensate from compressors, dryers and receivers.

Valve Orifice: 4mm

Operating Pressure: 0-16 Bar
